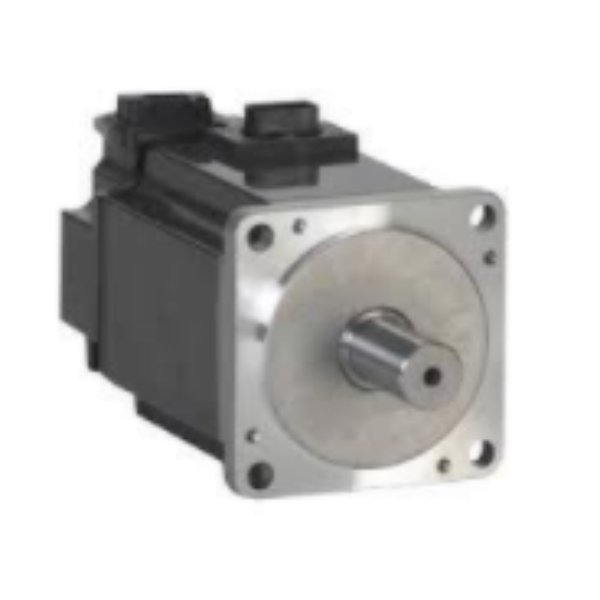

Type: HF-SE
Series: MELSERVO-J3
Serial Number: 213091
Product Details: Servomotor with brake, Motor characteristics: 2.39 Nm 2000 1/min 500 W, IP65
SERVO MOTOR
SERIES MELSERVO-J3
TYPE HF-SE
RATED CAPACITY (KW) 0,5
RATED TORQUE (NM) 2,39
MAXIMUM TORQUE (NM) 7,16
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 8,3
BRAKE YES
SHAFT TYPE KEYWAY
PROTECTION CLASS IP65
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE 17-BIT
ENCODER RESOLUTION (P/REV) 131072
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 130
DEPTH (MM) 153
WEIGHT (KG) 6,7
ORDER CODES
EUROPEAN ORDER CODE 213091
GLOBAL ORDER CODE 0HR951050
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30216
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Discontinued Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 6.97 KG
VOLUME 11.592 CDM
LENGTH 31,5 CM
WIDTH 16 CM
HEIGHT 23 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
DISCONTINUED (EOL) 01.04.2013
LAST TIME BUY (LTB) 31.03.2013
END OF SERVICE (EOS) 31.12.2019
SUCCESSOR 253966 HF-SN52BJK
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
