Type: HF-KN
Series: MELSERVO-J3
Serial Number: 239801
Product Details: Servomotor, Rated Power 100 W; Rated Torque 0,32 Nm, Maximum Torque 1,28 Nm

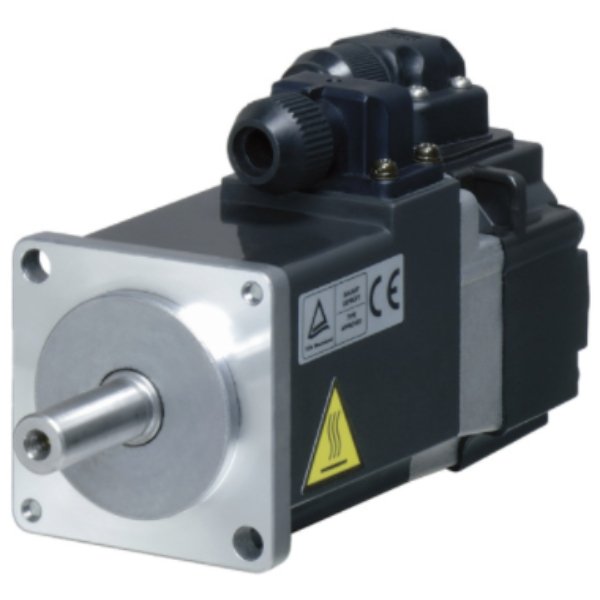

SERVO MOTOR
SERIES MELSERVO-J3
TYPE HF-KN
RATED CAPACITY (KW) 0,1
RATED TORQUE (NM) 0,32
MAXIMUM TORQUE (NM) 1,28
RATED SPEED (RPM) 3000
MAXIMUM SPEED (RPM) 4500
INERTIA (KG*CM2) 0,09
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP65
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE 17-BIT
ENCODER RESOLUTION (P/REV) 131072
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 40
HEIGHT (MM) 40
DEPTH (MM) 123,9
WEIGHT (KG) 0,7
ORDER CODES
EUROPEAN ORDER CODE 239801
GLOBAL ORDER CODE 0HZ052
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30219
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Discontinued Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.813 KG
VOLUME 2.622 CDM
LENGTH 24 CM
WIDTH 11,5 CM
HEIGHT 9,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 210944 HF-KE13BW1-S100
DISCONTINUED (EOL) 05.01.2015
LAST TIME BUY (LTB) 31.12.2015
END OF SERVICE (EOS) 31.12.2022
SUCCESSOR 282632 HG-KN13BJ
SUCCESSOR INFORMATION SYSTEM CHANGE REQUIRED
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
