Type: HF-JP
Series: MELSERVO-J3
Serial Number: 242233

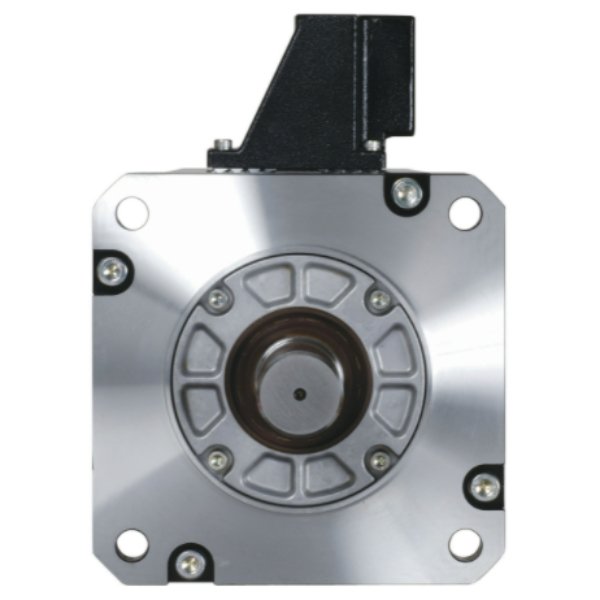

Product Details: Servomotor, Rated Output: 9kW; Rated torque 28,6 Nm, Maximum torque 85,8 Nm
SERVO MOTOR
SERIES MELSERVO-J3
TYPE HF-JP
RATED CAPACITY (KW) 9
RATED TORQUE (NM) 28,6
MAXIMUM TORQUE (NM) 85,8
RATED SPEED (RPM) 3000
MAXIMUM SPEED (RPM) 5000
INERTIA (KG*CM2) 65,4
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 400
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 262144
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 251,3
DEPTH (MM) 432
WEIGHT (KG) 42
ORDER CODES
EUROPEAN ORDER CODE 242233
GLOBAL ORDER CODE 0HS991-00103U
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30218
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Discontinued Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 43 KG
VOLUME 41.664 CDM
LENGTH 21 CM
WIDTH 64 CM
HEIGHT 31 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
DISCONTINUED (EOL) 29.06.2017
LAST TIME BUY (LTB) 31.01.2019
END OF SERVICE (EOS) 31.05.2026
SUCCESSOR 261383 HG-JR9034B
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
