Type: GT27 MODEL
Series: GOT2000 SERIES
Serial Number: 293270

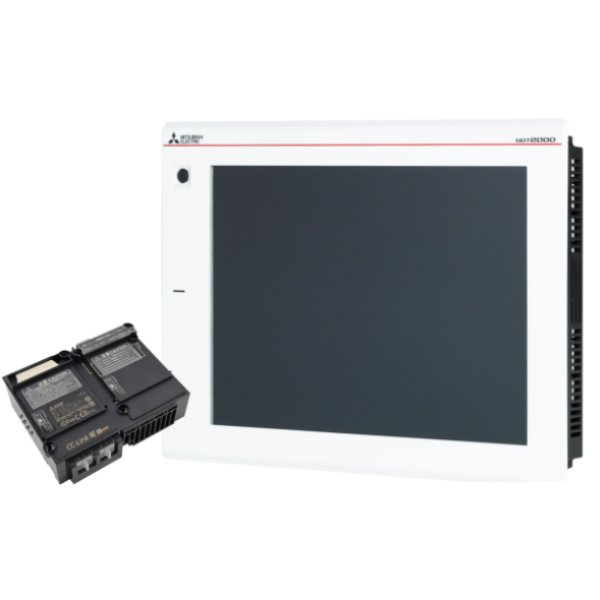

Product Details: GOT2000;Bundle with GT2712-STWD and CC-Link IE Field unit GT15-J71GF13-T2
HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT27 MODEL
POWER SUPPLY (V) 24
CURRENT TYPE DC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 12,1
RESOLUTION (PIXELS) 800X600
INTERNAL MEMORY CAPACITY (MB) 128
MEMORY CARD SLOT SD
USB 2
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS,CCLINK,M’NET,ETH,BUS
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 316
HEIGHT (MM) 246
DEPTH (MM) 52
WEIGHT (KG) 2,4
ORDER CODES
EUROPEAN ORDER CODE 293270
GLOBAL ORDER CODE 1EA789
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 4.305 KG
VOLUME 32.076 CDM
LENGTH 49,5 CM
WIDTH 40,5 CM
HEIGHT 16 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 270557 GT2712-STWD
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
