Type: GT27 MODEL
Series: GOT2000 SERIES
Serial Number: 293271

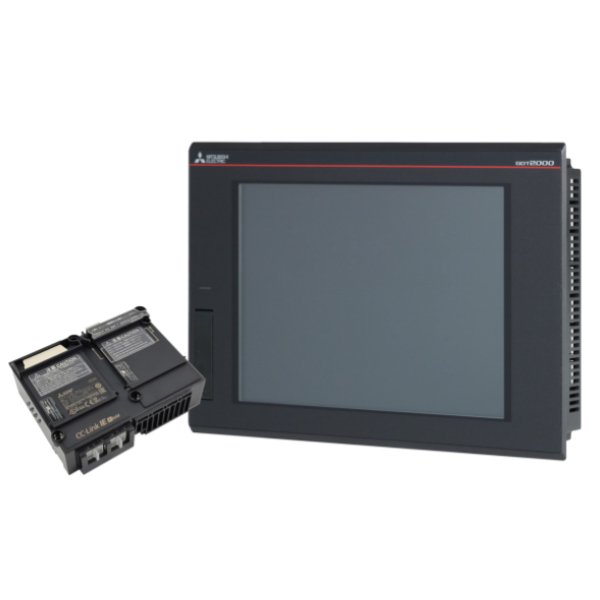

Product Details: GOT2000;Bundle with GT2710-STBA and CC-Link IE Field unit GT15-J71GF13-T2
HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT27 MODEL
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 10,4
RESOLUTION (PIXELS) 800X600
INTERNAL MEMORY CAPACITY (MB) 128
MEMORY CARD SLOT SD
USB 3
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS,CCLINK,M’NET,ETH,BUS
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 303
HEIGHT (MM) 218
DEPTH (MM) 52
WEIGHT (KG) 2,1
ORDER CODES
EUROPEAN ORDER CODE 293271
GLOBAL ORDER CODE 1EA772
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 3.841 KG
VOLUME 32.8 CDM
LENGTH 50 CM
WIDTH 41 CM
HEIGHT 16 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 270558 GT2710-STBA
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 1303-86-2
1317-36-8
7439-92-1
872-50-4
80-05-7
12060-00-3
1120-71-4
110-71-4
25973-55-1
127-19-5
552-30-7
DANGEROUS GOODS REGULATIONS NO
