Type: GT27 MODEL
Series: GOT2000 SERIES
Serial Number: 293281

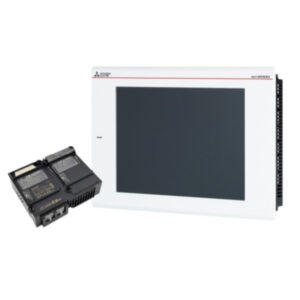

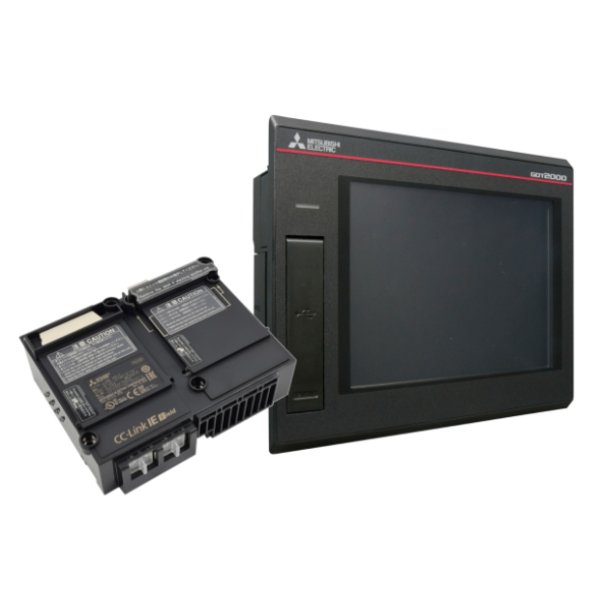

Product Details: GOT2000;Bundle with GT2705-VTBD and CC-Link IE Field unit GT15-J71GF13-T2
HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT27 MODEL
POWER SUPPLY (V) 24
CURRENT TYPE DC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 5,7
RESOLUTION (PIXELS) 640X480
INTERNAL MEMORY CAPACITY (MB) 32
MEMORY CARD SLOT SD
USB 3
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS,CCLINK,M’NET,ETH,BUS
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 167
HEIGHT (MM) 139
DEPTH (MM) 60
WEIGHT (KG) 1
ORDER CODES
EUROPEAN ORDER CODE 293281
GLOBAL ORDER CODE 1EA722
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.837 KG
VOLUME 12.392 CDM
LENGTH 39 CM
WIDTH 20,5 CM
HEIGHT 15,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 288037 GT2705-VTBD
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 1303-86-2
7439-92-1
13560-89-9
80-05-7
12060-00-3
1120-71-4
110-71-4
127-19-5
10043-35-3
DANGEROUS GOODS REGULATIONS NO
