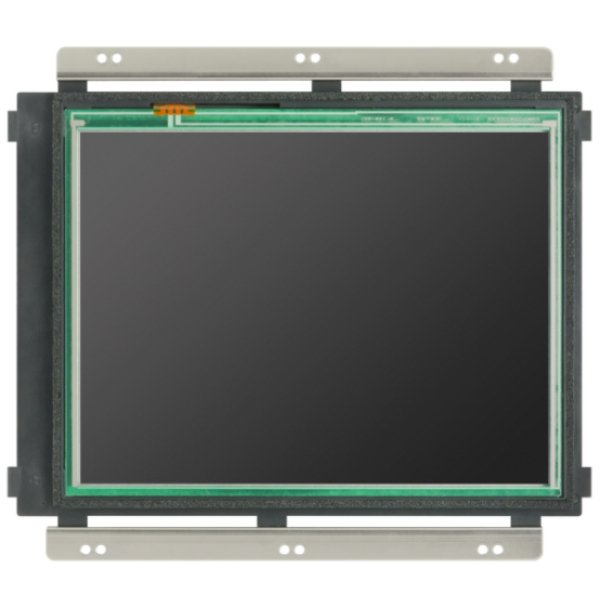

Type: GT25 OPEN FRAME MODEL
Series: GOT2000 SERIES
Serial Number: 296310
Product Details: GOT2000;12,1″TFT;DC;SVGA;65k col;RS-422/485;RS-232;USB;Eth;SD;OpenFrame+Sheet
HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT25 OPEN FRAME MODEL
POWER SUPPLY (V) 24
CURRENT TYPE DC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 12,1
RESOLUTION (PIXELS) 800X600
INTERNAL MEMORY CAPACITY (MB) 32
MEMORY CARD SLOT SD
USB 2
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS, ETHERNET
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 311
HEIGHT (MM) 237
DEPTH (MM) 54
WEIGHT (KG) 2,4 ORDER CODES
EUROPEAN ORDER CODE 296310
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 4.92 KG
VOLUME 59.94 CDM
LENGTH 60 CM
WIDTH 37 CM
HEIGHT 27 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
