Type: GT25 MODEL
Series: GOT2000 SERIES
Serial Number: 293282

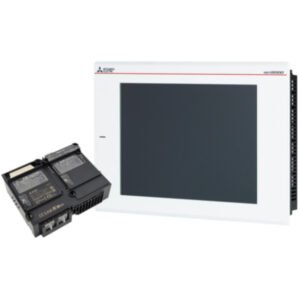

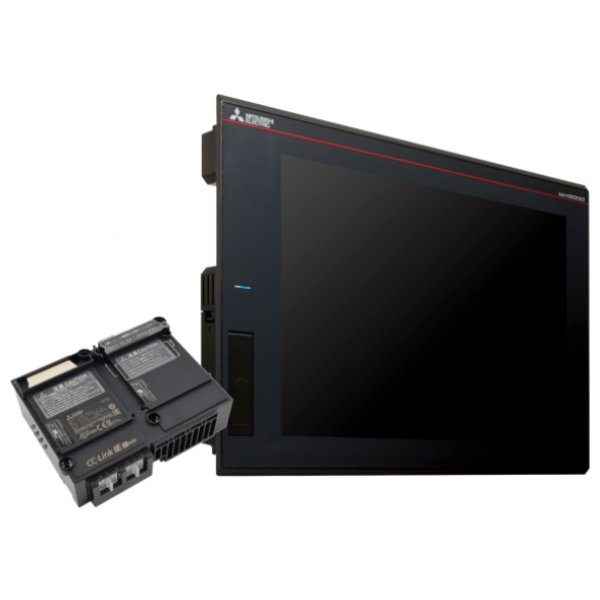

Product Details: GOT2000;Bundle with GT2512-STBA and CC-Link IE Field unit GT15-J71GF13-T2
HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT25 MODEL
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 12,1
RESOLUTION (PIXELS) 800X600
INTERNAL MEMORY CAPACITY (MB) 32
MEMORY CARD SLOT SD
USB 3
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS,CCLINK,M’NET,ETH,BUS
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 316
HEIGHT (MM) 246
DEPTH (MM) 52
WEIGHT (KG) 2,4
ORDER CODES
EUROPEAN ORDER CODE 293282
GLOBAL ORDER CODE 1EA582
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 4.245 KG
VOLUME 32.314 CDM
LENGTH 49,5 CM
WIDTH 40,8 CM
HEIGHT 16 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 281858 GT2512-STBA
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 1303-86-2
1317-36-8
7439-92-1
872-50-4
80-05-7
12060-00-3
1120-71-4
110-71-4
127-19-5
DANGEROUS GOODS REGULATIONS NO
