Type: GT25 MODEL
Series: GOT2000 SERIES
Serial Number: 276821
Product Details: GOT2000;8,4″TFT;AC;VGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;White

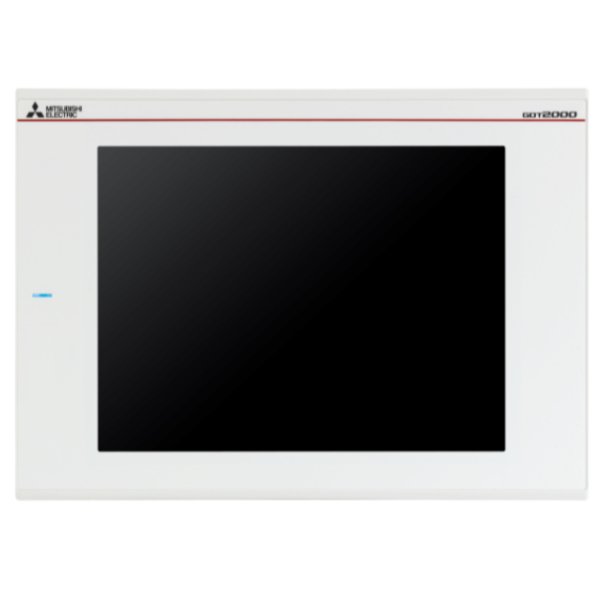

HUMAN MACHINE INTERFACE
SERIES GOT2000 SERIES
TYPE GT25 MODEL
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
DISPLAY TFT
DISPLAY COLOUR 65536
DISPLAY SIZE (INCH) 8,4
RESOLUTION (PIXELS) 640X480
INTERNAL MEMORY CAPACITY (MB) 80
MEMORY CARD SLOT SD
USB 2
ETHERNET PORT 1
RS-232 1
RS-422/485 1
NETWORK OPTIONS MODBUS,CCLINK,M’NET,ETH,BUS
SLOT FOR OPTIONAL CARDS YES
PROTECTION CLASS IP67F
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 241
HEIGHT (MM) 194
DEPTH (MM) 52
WEIGHT (KG) 1,5
ORDER CODES
EUROPEAN ORDER CODE 276821
GLOBAL ORDER CODE 1EA532
CLASSIFICATION DATA
PRODUCT HIERARCHY IAT93002
CLASS DESCRIPTION FA-HMI: Human Machine Interface
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.99 KG
VOLUME 8.415 CDM
LENGTH 30 CM
WIDTH 25,5 CM
HEIGHT 11 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
SUCCESSOR 293290 GT2508-VTWA-GF
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
1317-36-8
1303-86-2
872-50-4
1120-71-4
110-71-4
DANGEROUS GOODS REGULATIONS NO
