Type: GT25 MODEL
Series: GOT2000 SERIES
Serial Number: 276819
Product Details: Description

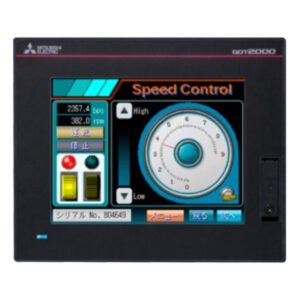

High-performance mid-range Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI – Mitsubishi Electric (GOT2000 series GT25) – 8.4″ 640x480pixels (VGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer – Black frame – 32MBytes (ROM) memory capacity – with 2 x USB type-A (host) connectors + USB mini-B (device) connector + 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422/RS-485) – with RS-232 + RS-422 + RS-485 + Ethernet + CC-Link communication capability – Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) – Flush mounting – IP67 – equivalent to GT2508VTBA
Inventory Status: Normally stock
Specifications
Primary brandMitsubishi Electric
Main functionHMI / Display unit
Product series / family nameGOT2000 series
Sub-range nameGT25
Display8.4″ 640x480pixels (VGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer
Supply voltage (AC)100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac)
FunctionsHigh-performance mid-range Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI
ColorBlack frame
Memory capacity32MBytes (ROM)
80MBytes (RAM)
Connection type2 x USB type-A (host) connectors
USB mini-B (device) connector
9-pin D-Sub male connector (RS-232)
9-pin D-Sub female connector (RS-422/RS-485)
RJ45 port (Ethernet)
Communication protocolRS-232
RS-422
RS-485
Ethernet
CC-Link
Mounting modeFlush
Degree of protectionIP67
DimensionsW241mm x H194mm x D52mm
W9.49″ x H7.64″ x D2.05″
Ambient air temperature for operation0…+55 °C
Compliant with standard(s)CE
EAC
cUL
UL
KC
IEC 61131-2
JIS B 3502
Power consumption11 W
ContentsGT11-50BAT lithium battery
Equivalent toGT2508VTBA
Electrical durability60 000 hours
Door cut-out height6.93″ / 176 mm
Door cut-out width8.94″ / 227 mm
Storage typeSD card slot
Ambient air temperature for storage-20…+60 °C
Humidity10% to 90% (non-condensing)
