Type: GT21 WIDE MODEL
Series: GOT2000 SERIES
Serial Number: 311489
Product Details: Description

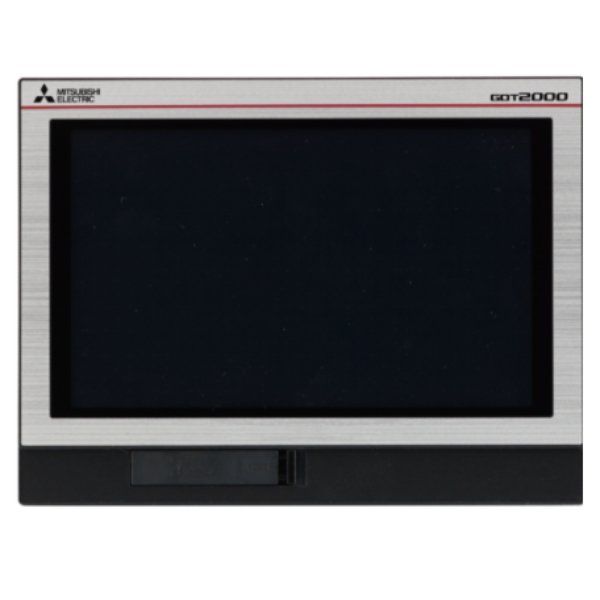

Compact Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI – Mitsubishi Electric (GOT2000 series GT21 Wide) – Wide-screen 7″ 800x480pixels (WVGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer – Black frame – 15MBytes (ROM) memory capacity – with USB type-A (host) connector + USB mini-B (device) connector + 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422/RS-485) – with RS-232 + RS-422 + RS-485 + Ethernet + CC-Link communication capability – Supply voltage 24Vdc – Flush mounting – IP67 – equivalent to GT2107WTSD
Inventory Status: Normally stock
Specifications
Primary brandMitsubishi Electric
Main functionHMI / Display unit
Product series / family nameGOT2000 series
Sub-range nameGT21 Wide
DisplayWide-screen 7″ 800x480pixels (WVGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer
Supply voltage (DC)24Vdc
FunctionsCompact Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI
ColorBlack frame
Memory capacity15MBytes (ROM)
Connection typeUSB type-A (host) connector
USB mini-B (device) connector
9-pin D-Sub male connector (RS-232)
9-pin D-Sub female connector (RS-422/RS-485)
RJ45 port (Ethernet)
Communication protocolRS-232
RS-422
RS-485
Ethernet
CC-Link
Mounting modeFlush
Degree of protectionIP67
DimensionsW189mm x H142mm x D48mm
W7.44″ x H5.59″ x D1.89″
Ambient air temperature for operation0…+55 °C
Compliant with standard(s)CE
EAC
cUL
UL
KC
IEC 61131-2
JIS B 3502
Power consumption11.3 W
ContentsGT11-50BAT lithium battery
Equivalent toGT2107WTSD
Electrical durability50 000 hours
Door cut-out height5.26″ / 133.5 mm
Door cut-out width7.11″ / 180.5 mm
Storage typeSD card slot
Ambient air temperature for storage-20…+60 °C
Humidity10% to 90% (non-condensing)
