Type: GT21 MODEL
Series: GOT2000 SERIES
Serial Number: 279810
Product Details: Description

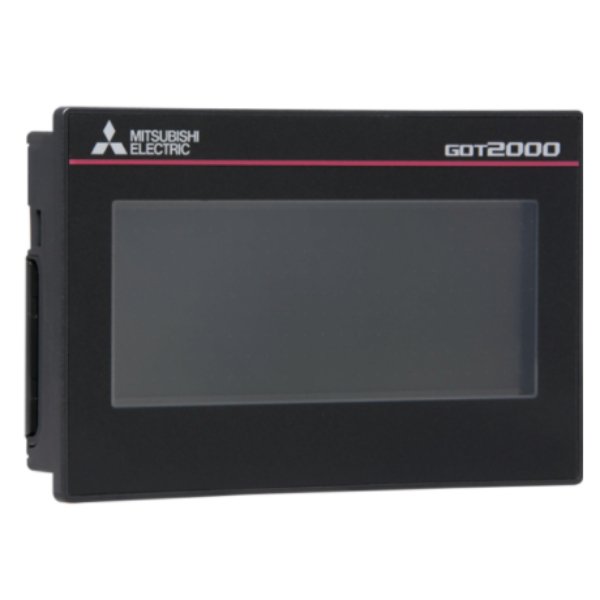

Compact Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI – Mitsubishi Electric (GOT2000 series GT21) – 3.8″ 320x128pixels TFT monochrome with 5-color (white/green/red/orange/pink) LED backlight / Analog resistive film digitizer – Black frame – 3MBytes (ROM) memory capacity – with 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422/RS-485) – with RS-232 + RS-485 communication capability – Supply voltage 24Vdc – Flush mounting – IP67 – equivalent to GT2103PMBDS
Inventory Status: Normally stock
Specifications
Primary brandMitsubishi Electric
Main functionHMI / Display unit
Product series / family nameGOT2000 series
Sub-range nameGT21
Display3.8″ 320x128pixels TFT monochrome with 5-color (white/green/red/orange/pink) LED backlight / Analog resistive film digitizer
Supply voltage (DC)24Vdc
FunctionsCompact Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI
ColorBlack frame
Memory capacity3MBytes (ROM)
Connection type9-pin D-Sub male connector (RS-232)
9-pin D-Sub female connector (RS-422/RS-485)
Communication protocolRS-232
RS-485
Mounting modeFlush
Degree of protectionIP67
DimensionsW113mm x H74mm x D27mm
W4.45″ x H2.91″ x D1.06″
Ambient air temperature for operation0…+55 °C
Compliant with standard(s)CE
EAC
cUL
UL
KC
IEC 61131-2
JIS B 3502
Power consumption1.9 W
Equivalent toGT2103PMBDS
Electrical durability50 000 hours
Door cut-out height2.60″ / 66 mm
Door cut-out width4.13″ / 105 mm
Storage typeSD card slot
Ambient air temperature for storage-20…+60 °C
Humidity10% to 90% (non-condensing)
