Type: GS21 MODEL
Series: GOT SIMPLE SERIES
Serial Number: 294415
Product Details: Description

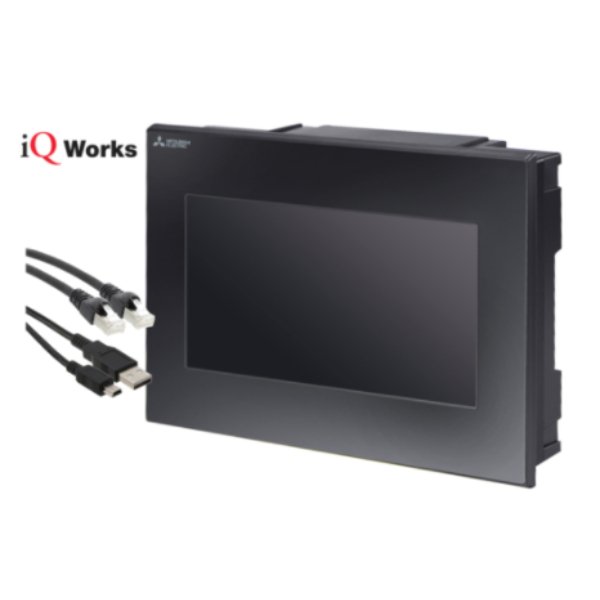

Cost-effective performance Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI – Mitsubishi Electric (GS21 Series (GOT Simple)) – 7″ 800x600pixels (WVGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer – Black frame – 9MBytes (ROM) memory capacity – with USB mini-B (device) connector + 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422) – with RS-232 + RS-422 + Ethernet communication capability – Supply voltage 24Vdc – Flush mounting – IP67 – equivalent to GS2107WTBD
Inventory Status: Normally stock
Specifications
Primary brandMitsubishi Electric
Main functionHMI / Display unit
Product series / family nameGS21 Series (GOT Simple)
Display7″ 800x600pixels (WVGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer
Supply voltage (DC)24Vdc
FunctionsCost-effective performance Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI
ColorBlack frame
Memory capacity9MBytes (ROM)
Connection typeUSB mini-B (device) connector
9-pin D-Sub male connector (RS-232)
9-pin D-Sub female connector (RS-422)
RJ45 port (Ethernet)
Communication protocolRS-232
RS-422
Ethernet
Mounting modeFlush
Degree of protectionIP67
DimensionsW206mm x H155mm x D50mm
W8.11″ x H6.11″ x D1.97″
Ambient air temperature for operation0…+55 °C
Power consumption6.5 W
Equivalent toGS2107WTBD
Door cut-out height137 mm
Door cut-out width191 mm
Storage typeSD card slot
Ambient air temperature for storage-20…+60 °C
Humidity10% to 90% (non-condensing)
