Type: FX3U
Series: MELSEC-F SERIES
Serial Number:

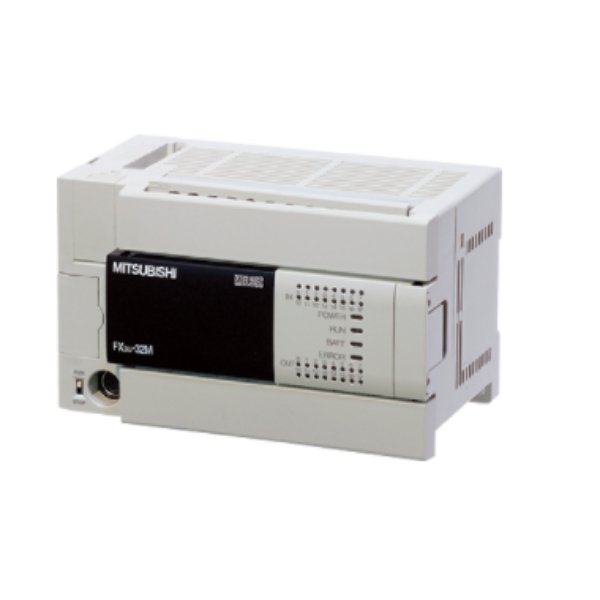

Product Details: PLC, FX3U Base Unit AC 100-240 V; 32 inputs AC 100V; 32 relay outputs
MAIN UNIT
SERIES MELSEC-F SERIES
TYPE FX3U
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
PROGRAM MEMORY 64K STEPS
PROGRAM MEMORY UNIT RAM
INTEGRATED DIGITAL INPUTS 32
INTEGRATED DIGITAL OUTPUTS 32
OUTPUT TYPE RELAY
LOCAL I/O POINTS 256
LOCAL + REMOTE I/O POINTS 384
EXPANDABLE YES
CYCLE TIME LD (NS) 65
CYCLE TIME MOV (NS) 642
RS-422 1
POWER CONSUMPTION (W) 45
BUFFER BATTERY YES
PROTECTION CLASS IP10
MIN. AMBIENT TEMPERATURE (°C) 0
MAX. AMBIENT TEMPERATURE (°C) 55
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 285
HEIGHT (MM) 90
DEPTH (MM) 86
WEIGHT (KG) 1,2
ORDER CODES
EUROPEAN ORDER CODE 237262
GLOBAL ORDER CODE 09S295
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD213
CLASS DESCRIPTION FA-COM PLC: Main Unit
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.42 KG
VOLUME 4.62 CDM
LENGTH 12 CM
WIDTH 35 CM
HEIGHT 11 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 103702
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
