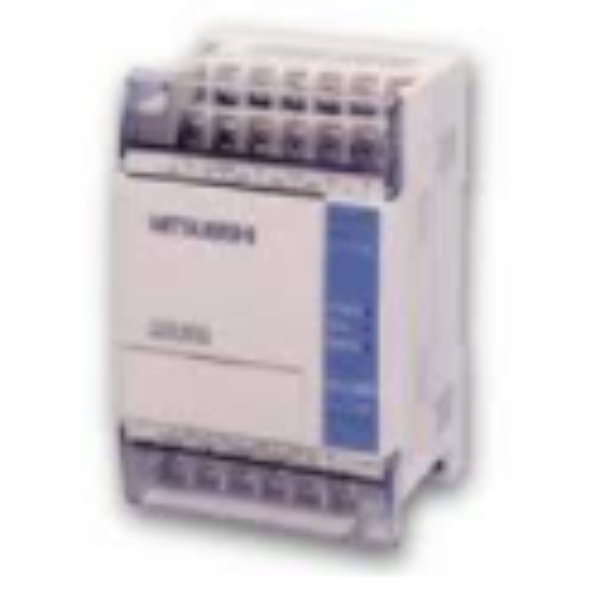

Type: FX1S
Series: MELSEC-F SERIES
Serial Number:
Product Details: PLC, FX1S Base Unit AC 100-240 V; 12 inputs DC 24 V; 8 transistor outputs
MAIN UNIT
SERIES MELSEC-F SERIES
TYPE FX1S
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
PROGRAM MEMORY 2K
PROGRAM MEMORY UNIT STEPS
INTEGRATED DIGITAL INPUTS 12
INTEGRATED DIGITAL OUTPUTS 8
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
LOCAL I/O POINTS 30
EXPANDABLE NO
RS-232 –
RS-422 –
RS-485 –
POWER CONSUMPTION (W) 20
BUFFER BATTERY NO
PROTECTION CLASS IP10
MIN. AMBIENT TEMPERATURE (°C) 0
MAX. AMBIENT TEMPERATURE (°C) 55
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 75
HEIGHT (MM) 90
DEPTH (MM) 75
WEIGHT (KG) 0,4
ORDER CODES
EUROPEAN ORDER CODE 139437
GLOBAL ORDER CODE 09M422
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD209
CLASS DESCRIPTION FA-COM PLC: Main Unit
EXTERNAL MATERIAL GROUP Discontinued Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.43 KG
VOLUME 1.54 CDM
LENGTH 14 CM
WIDTH 11 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
DISCONTINUED (EOL) 19.01.2015
LAST TIME BUY (LTB) 31.10.2015
END OF SERVICE (EOS) 31.12.2022
SUCCESSOR 267128 FX3S-20MT/ESS
SUCCESSOR INFORMATION SYSTEM CHANGE REQUIRED
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
