Type: FX1S
Series: MELSEC-F SERIES
Serial Number:

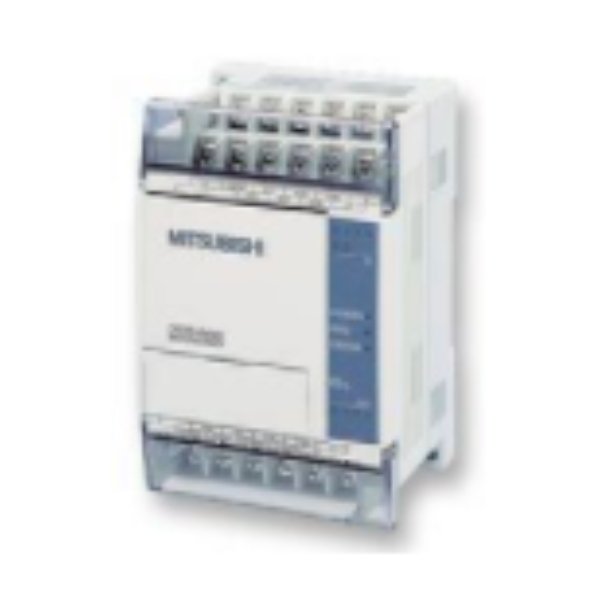

Product Details: PLC, FX1S Base Unit AC 100-240 V; 6 inputs DC 24 V; 4 relay outputs
MAIN UNIT
SERIES MELSEC-F SERIES
TYPE FX1S
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
PROGRAM MEMORY 2K STEPS
PROGRAM MEMORY UNIT EEPROM
INTEGRATED DIGITAL INPUTS 6
INTEGRATED DIGITAL OUTPUTS 4
OUTPUT TYPE RELAY
LOCAL I/O POINTS 30
EXPANDABLE NO
RS-232 –
RS-422 –
RS-485 –
POWER CONSUMPTION (W) 19
BUFFER BATTERY NO
PROTECTION CLASS IP10
MIN. AMBIENT TEMPERATURE (°C) 0
MAX. AMBIENT TEMPERATURE (°C) 55
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 90
DEPTH (MM) 75
WEIGHT (KG) 0,3
ORDER CODES
EUROPEAN ORDER CODE 141243
GLOBAL ORDER CODE 09M417
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD209
CLASS DESCRIPTION FA-COM PLC: Main Unit
EXTERNAL MATERIAL GROUP Discontinued Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.403 KG
VOLUME 1.668 CDM
LENGTH 14,5 CM
WIDTH 11,5 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 130733
DISCONTINUED (EOL) 19.01.2015
LAST TIME BUY (LTB) 31.10.2015
END OF SERVICE (EOS) 31.12.2022
SUCCESSOR 267110 FX3S-10MR/ES
SUCCESSOR INFORMATION SYSTEM CHANGE REQUIRED
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
