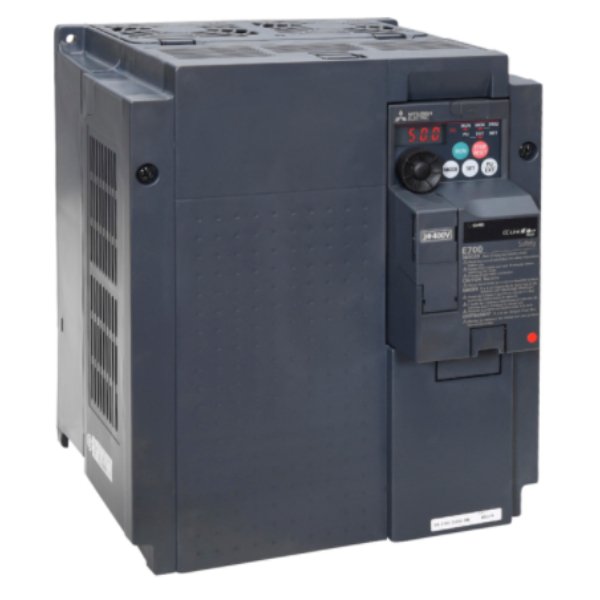

Mitsubishi FR-E740-300SC-ENE Inverter; Rated Power: 15kW; 3×380-480V; Rated Current: 30A@50°C; IP20

1,186.00

Close
Price Summary
  • 1,186.00
  • 1,186.00
  • 1,186.00
In Stock
Highlights:

Type: FR-E700-ENE INVERTER

Compare
SKU: FR-E740-300SC-ENE Category:
Description

Type: FR-E700-ENE INVERTER

Series: FR-E700 SERIES

Serial Number: 316590

Product Details: Inverter; Rated Power: 15kW; 3×380-480V; Rated Current: 30A@50°C; IP20
INVERTER
SERIES FR-E700 SERIES
TYPE FR-E700-ENE INVERTER
MINIMUM RATED VOLTAGE (V) 380
MIN. PERMISSIBLE VOLTAGE (V) 325
MAXIMUM RATED VOLTAGE (V) 480
MAX. PERMISSIBLE VOLTAGE (V) 528
CURRENT TYPE AC
PHASES 3
RATED OUTPUT CURRENT ND (A) 30
RATED MOTOR CAPACITY ND (KW) 15
CONTROL METHOD V/F CONTROL
MAGNETIC FLUX VECTOR CONTROL
MOTOR TYPE INDUCTION MOTOR
BRAKE CHOPPER ED (%) 30
INTEGRATED EMC FILTER NO
SAFE TORQUE OFF (STO) YES
REGENERATIVE (4Q) NO
INTEGRATED DC CHOKE NO
DISPLAY BUILT-IN
DISPLAY TYPE 3 DIGITS LED
PLC FUNCTION NO
INTEGRATED DIGITAL INPUTS 6
DIGITAL OUTPUTS (TRANSISTOR) 2
DIGITAL OUTPUTS (RELAY) 1
INTEGRATED ANALOGUE INPUTS 2
INTEGRATED ANALOGUE OUTPUTS 1
TYPE OF TERMINAL BLOCK PLUG
EXPANDABLE YES
RS-485 1
USB 1
BUILT-IN NETWORK MODBUS/TCP
CC-Link IE Field Network Basic
PROTECTION CLASS IP20
STANDBY POWER CONSUMPTION (W) 12,2
LEAKAGE CURRENT (MA) 1
ETHERNET PORT 1
POWER LOSS ND (W) 640
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 220
HEIGHT (MM) 260
DEPTH (MM) 196
WEIGHT (KG) 6
ORDER CODES
EUROPEAN ORDER CODE 316590
GLOBAL ORDER CODE 1ARY79
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK234
CLASS DESCRIPTION FA-Inverter: Inverter
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 7.131 KG
VOLUME 28.35 CDM
LENGTH 35 CM
WIDTH 27 CM
HEIGHT 30 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85044090
COUNTRY OF ORIGIN JP
LIFE CYCLE
DISCONTINUED (EOL) 04.02.2021
LAST TIME BUY (LTB) 01.06.2021
END OF SERVICE (EOS) 01.06.2028
SUCCESSOR 587783 FR-E840-0300EPB-60
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 117-81-7
96-45-7
7439-92-1
13560-89-9
15571-58-1
541-02-6
127-19-5
556-67-2
DANGEROUS GOODS REGULATIONS NO
