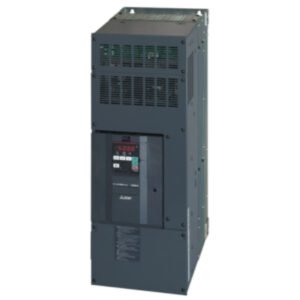

Mitsubishi FR-A870-00660-E2-60B Inverter AC; Pn: 45-55kW; 3×525-690V;In max: 66A; IP20; Braking chopper

In Stock
Highlights:

Type: FR-A800-E INVERTER

Compare
SKU: FR-A870-00660-E2-60B Categories: ,
Description

Type: FR-A800-E INVERTER

Series: FR-A SERIES

Serial Number: 406377

Product Details: Inverter AC; Pn: 45-55kW; 3×525-690V;In max: 66A; IP20; Braking chopper

INVERTER
SERIES FR-A SERIES
TYPE FR-A800-E INVERTER
MINIMUM RATED VOLTAGE (V) 525/600
MIN. PERMISSIBLE VOLTAGE (V) 472/540
MAXIMUM RATED VOLTAGE (V) 600/690
MAX. PERMISSIBLE VOLTAGE (V) 660/759
CURRENT TYPE AC
PHASES 3
RATED OUTPUT CURRENT SLD (A) 66
RATED OUTPUT CURRENT ND (A) 55
RATED MOTOR CAPACITY SLD (KW) 55
RATED MOTOR CAPACITY ND (KW) 45
CONTROL METHOD SOFT-PWM/HIGH FRQ PWM/VECTOR
MOTOR TYPE INDUCTION MOTOR
INTEGRATED EMC FILTER YES
SAFE TORQUE OFF (STO) YES
REGENERATIVE (4Q) YES
INTEGRATED DC CHOKE YES
DISPLAY FR-DU08
DISPLAY TYPE 5 DIGITS LED
PLC FUNCTION YES
PROGRAM MEMORY 6K
PROGRAM MEMORY UNIT STEPS
INTEGRATED DIGITAL INPUTS 12
DIGITAL OUTPUTS (TRANSISTOR) 5
DIGITAL OUTPUTS (RELAY) 2
INTEGRATED ANALOGUE INPUTS 3
INTEGRATED ANALOGUE OUTPUTS 2
TYPE OF TERMINAL BLOCK PLUG
EXPANDABLE YES
RS-485 1
USB 1+1 MINI
BUILT-IN NETWORK CC-LINK IE FIELD BASIC
PROTECTION CLASS IP20
STANDBY POWER CONSUMPTION (W) –
LEAKAGE CURRENT (MA) –
ETHERNET PORT 1
POWER LOSS SLD (W) 1000
POWER LOSS ND (W) 700
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 251
HEIGHT (MM) 753
DEPTH (MM) 410
WEIGHT (KG) 56
