Type: REMOTE TRANSISTOR OUTPUT
Series: CC-LINK
Serial Number:

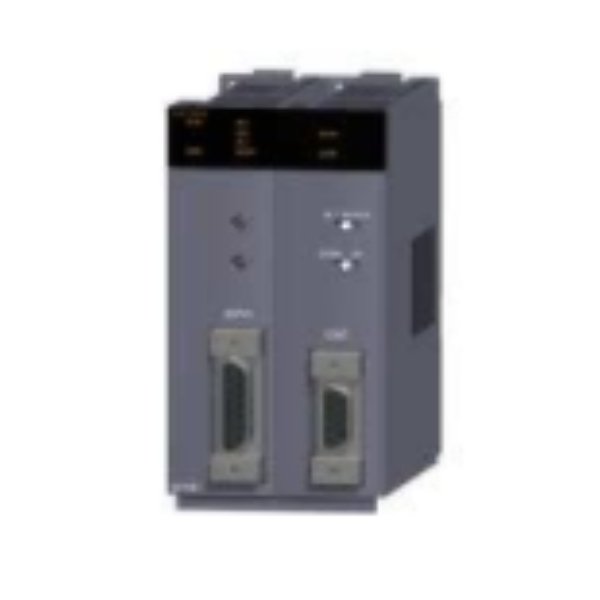

Product Details: PLC CC-Link I/O module; 16 transistor outputs; sink type; push-in connector
DIGITAL OUTPUT MODULE
SERIES CC-LINK
TYPE REMOTE TRANSISTOR OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL OUTPUTS 16
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
RATED LOAD VOLTAGE (VDC) 12-24
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,04
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 115
DEPTH (MM) 62
WEIGHT (KG) 0,19
ORDER CODES
EUROPEAN ORDER CODE 288818
GLOBAL ORDER CODE 1W5149
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50301
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.284 KG
VOLUME 2.365 CDM
LENGTH 21,5 CM
WIDTH 11 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 2451-62-9
DANGEROUS GOODS REGULATIONS NO
