Type: REMOTE I/O COMBINED MODULE
Series: CC-LINK
Serial Number:

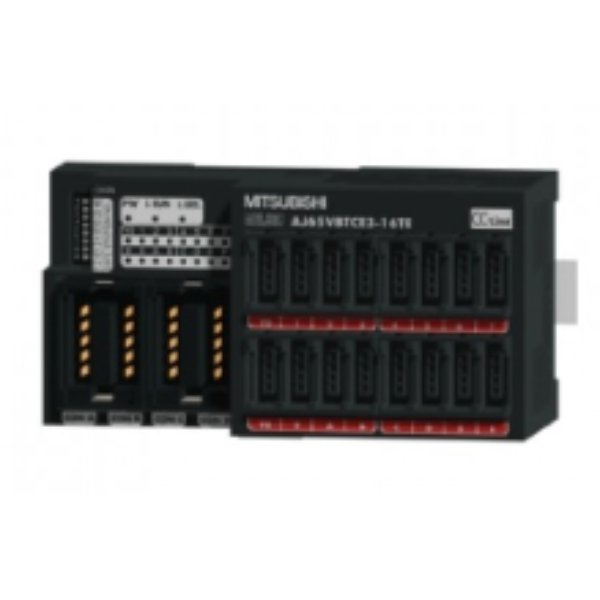

Product Details: PLC CC-LINK I/O Module; 8 inputs; 8 transistor outputs; e-CON connector; sink
DIGITAL I/O MODULE
SERIES CC-LINK
TYPE REMOTE I/O COMBINED MODULE
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 8
INTEGRATED DIGITAL OUTPUTS 8
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,04
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 100
HEIGHT (MM) 50
DEPTH (MM) 45,5
WEIGHT (KG) 0,11
ORDER CODES
EUROPEAN ORDER CODE 273746
GLOBAL ORDER CODE 1W5432
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.4 KG
VOLUME 0
LENGTH 0
WIDTH 0
HEIGHT 0
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
