Type: REMOTE TRANSISTOR OUTPUT
Series: CC-LINK
Serial Number:

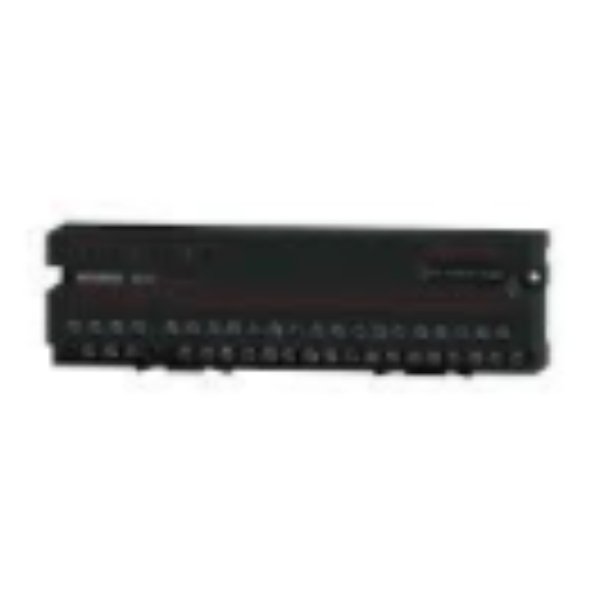

Product Details: PLC CC-Link compact I/O module; 16 outputs; source; 0.5A; screw type
DIGITAL OUTPUT MODULE
SERIES CC-LINK
TYPE REMOTE TRANSISTOR OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL OUTPUTS 16
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
RATED LOAD VOLTAGE (VDC) 12/24
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,05
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 179
HEIGHT (MM) 50
DEPTH (MM) 40
WEIGHT (KG) 0,26
ORDER CODES
EUROPEAN ORDER CODE 204679
GLOBAL ORDER CODE 1W5451
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50301
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.321 KG
VOLUME 0.847 CDM
LENGTH 22 CM
WIDTH 7 CM
HEIGHT 5,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
2451-62-9
DANGEROUS GOODS REGULATIONS NO
