Type: REMOTE I/O COMBINED MODULE
Series: CC-LINK
Serial Number: 137590

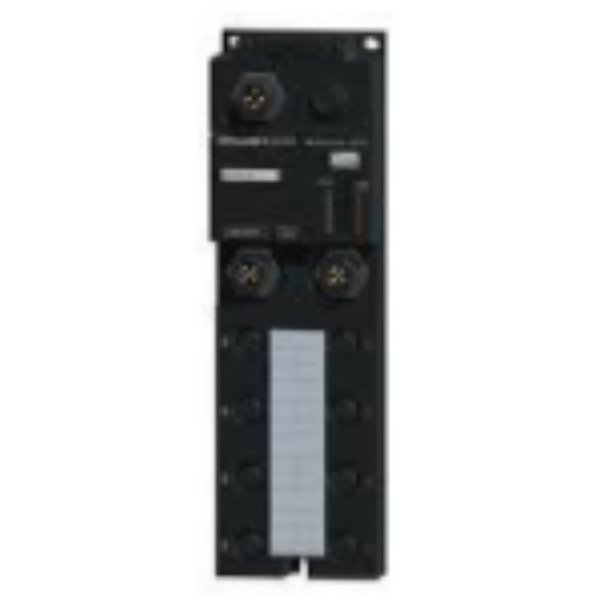

Product Details: PLC CC-Link I/O module IP67; 8 Inputs/8 Outputs (source-type)
DIGITAL I/O MODULE
SERIES CC-LINK
TYPE REMOTE I/O COMBINED MODULE
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 8
INTEGRATED DIGITAL OUTPUTS 8
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,045
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 200
DEPTH (MM) 34
WEIGHT (KG) 0,4
ORDER CODES
EUROPEAN ORDER CODE 137590
GLOBAL ORDER CODE 1W5110
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50301
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.4 KG
VOLUME 2.258 CDM
LENGTH 21,5 CM
WIDTH 10,5 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
68-12-2
2451-62-9
DANGEROUS GOODS REGULATIONS NO
