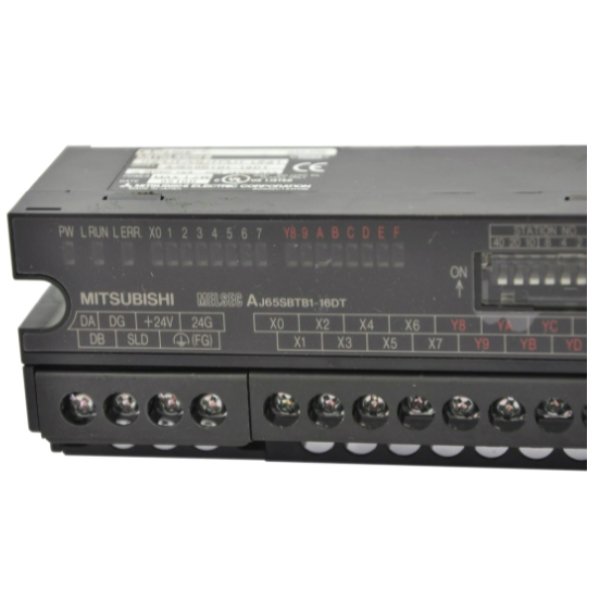

Type: REMOTE I/O COMBINED MODULE
Series: CC-LINK
Serial Number:
Product Details: PLC CC-Link I/O module; 16 In-/ 16Outputs; sink type; 2 piece terminal block
DIGITAL I/O MODULE
SERIES CC-LINK
TYPE REMOTE I/O COMBINED MODULE
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 16
INTEGRATED DIGITAL OUTPUTS 16
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 12/24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,055
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 64
HEIGHT (MM) 170
DEPTH (MM) 80
WEIGHT (KG) 0,65
ORDER CODES
EUROPEAN ORDER CODE 220915
GLOBAL ORDER CODE 1W5448
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50301
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.799 KG
VOLUME 3.956 CDM
LENGTH 21,5 CM
WIDTH 16 CM
HEIGHT 11,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
2451-62-9
DANGEROUS GOODS REGULATIONS NO
