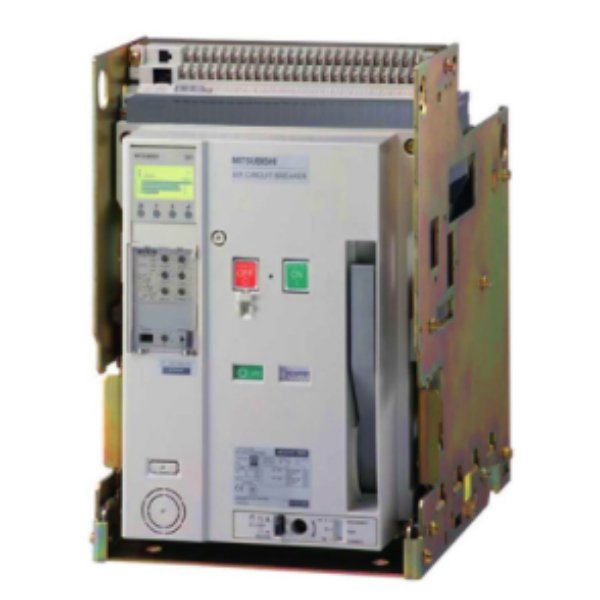

Type: AE-SW – LV AIR CIRCUIT BREAKER
Series: WS-V ACB
Serial Number: 168452
Product Details: Circuit-breaker; In max=4000A; Icu=Ics=85kA at AC 500V; with relay base; 5a5b
AIR CIRCUIT BREAKER
SERIES WS-V ACB
TYPE AE-SW – LV AIR CIRCUIT BREAKER
NUMBER OF POLES 4
CURRENT RANGE IR (A) 2000-4000
CURRENT TYPE AC
RATED VOLTAGE (V) 690
CYCLES WITH RATED CURRENT 500
CYCLES WITHOUT RATED CURRENT 20000
FRAME SIZE 4000
BREAKING CAPACITY AT 500V (KA) 85
NO OF AUXILIARY CONTACTS NO 5
NO OF AUXILIARY CONTACTS NC 5
INTERNAL POWER SUPPLY (V) 100-240 AC 100-125 DC
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 569
HEIGHT (MM) 430
DEPTH (MM) 368
WEIGHT (KG) 136
ORDER CODES
EUROPEAN ORDER CODE 168452
GLOBAL ORDER CODE 160731A0006UZ
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN20107
CLASS DESCRIPTION FA-ACB: Air Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 145 KG
VOLUME 335.134 CDM
LENGTH 67 CM
WIDTH 82 CM
HEIGHT 61 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85365080
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
