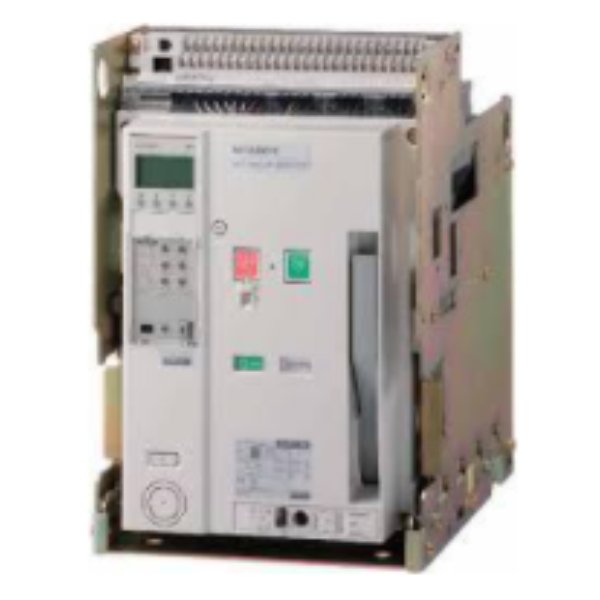

Type: AE-SW – LV AIR CIRCUIT BREAKER
Series: WS-V ACB
Serial Number: 205157
Product Details: Circuit-breaker; In max=4000A; Icu=Ics=130kA at AC 500V; with relay base; 5a5b
AIR CIRCUIT BREAKER
SERIES WS-V ACB
TYPE AE-SW – LV AIR CIRCUIT BREAKER
NUMBER OF POLES 4
CURRENT RANGE IR (A) 2000-4000
CURRENT TYPE AC
RATED VOLTAGE (V) 690
CYCLES WITH RATED CURRENT 1000
CYCLES WITHOUT RATED CURRENT 5000
FRAME SIZE 4000
BREAKING CAPACITY AT 500V (KA) 130
NO OF AUXILIARY CONTACTS NO 5
NO OF AUXILIARY CONTACTS NC 5
INTERNAL POWER SUPPLY (V) 100-240 AC 100-125 DC
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 873
HEIGHT (MM) 414
DEPTH (MM) 290
WEIGHT (KG) 160
ORDER CODES
EUROPEAN ORDER CODE 205157
GLOBAL ORDER CODE 160812A0006V0
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN20107
CLASS DESCRIPTION FA-ACB: Air Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 275 KG
VOLUME 646.952 CDM
LENGTH 142 CM
WIDTH 67 CM
HEIGHT 68 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85365080
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
