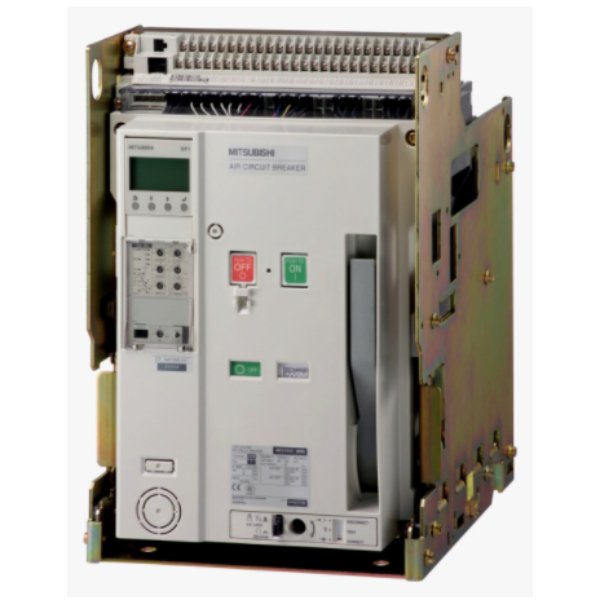

Type: AE-SW – LV AIR CIRCUIT BREAKER
Series: WS-V ACB
Serial Number: 168444
Product Details: Circuit-breaker; In max=2000A; Icu=Ics=85kA at AC 500V; with relay base; 5a5b
AIR CIRCUIT BREAKER
SERIES WS-V ACB
TYPE AE-SW – LV AIR CIRCUIT BREAKER
NUMBER OF POLES 4
CURRENT RANGE IR (A) 1000-2000
CURRENT TYPE AC
RATED VOLTAGE (V) 690
CYCLES WITH RATED CURRENT 1500
CYCLES WITHOUT RATED CURRENT 20000
FRAME SIZE 2000
BREAKING CAPACITY AT 500V (KA) 85
NO OF AUXILIARY CONTACTS NO 5
NO OF AUXILIARY CONTACTS NC 5
INTERNAL POWER SUPPLY (V) 100-240 AC 100-125 DC
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 605
HEIGHT (MM) 410
DEPTH (MM) 290
WEIGHT (KG) 72
ORDER CODES
EUROPEAN ORDER CODE 168444
GLOBAL ORDER CODE 160411AA101UF
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN20107
CLASS DESCRIPTION FA-ACB: Air Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 90 KG
VOLUME 321.47 CDM
LENGTH 85 CM
WIDTH 61 CM
HEIGHT 62 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85365080
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 129225
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
